7582376 Central electrical system
Unit7582376Detail
|
Unit7582376Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
58 |
1 |
WG9716582011 |

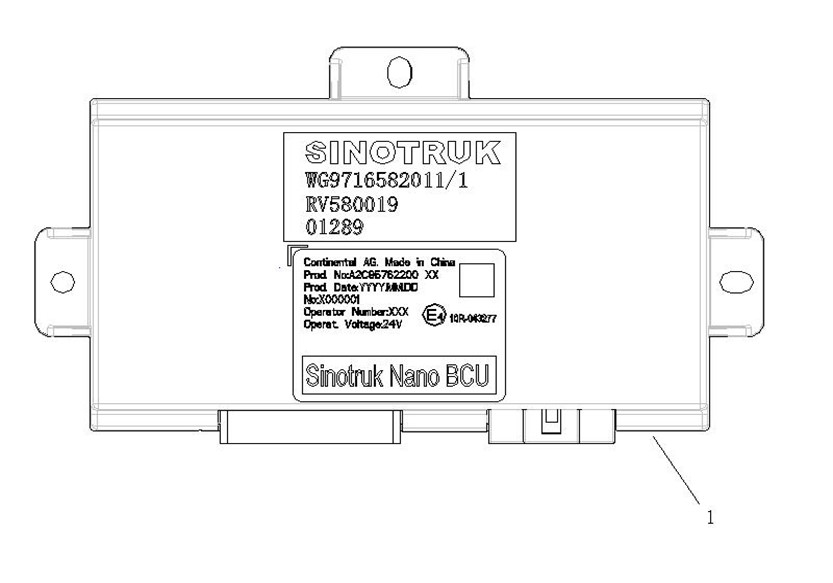

NanoBCU control unit |
001 |
7582376 |
||
|
1 |
2 |
WG9716582301 |
Electrical junction box |
001 |
7582376 |
||
|
3 |
2.1 |
WG9716582301+001/1 |
fuse |
004 |
7582376 |
||
|
12 |
2.10 |
WG9716582301+010/1 |
relay |
002 |
7582376 |
||
|
13 |
2.11 |
WG9716582301+011/1 |
relay |
001 |
7582376 |
||
|
14 |
2.12 |
WG9716582301+012/1 |
diode |
002 |
7582376 |
||
|
15 |
2.13 |
WG9716582301+013/1 |
relay |
002 |
7582376 |
||
|
4 |
2.2 |
WG9716582301+002/1 |
fuse |
001 |
7582376 |
||
|
5 |
2.3 |
WG9716582301+003/1 |
fuse |
016 |
7582376 |
||
|
6 |
2.4 |
WG9716582301+004/1 |
fuse |
015 |
7582376 |
||
|
7 |
2.5 |
WG9716582301+005/1 |
fuse |
004 |
7582376 |
||
|
8 |
2.6 |
WG9716582301+006/1 |
fuse |
005 |
7582376 |
||
|
9 |
2.7 |
WG9716582301+007/1 |
fuse |
001 |
7582376 |
||
|
10 |
2.8 |
WG9716582301+008/1 |
relay |
006 |
7582376 |
||
|
11 |
2.9 |
WG9716582301+009/1 |
relay |
002 |
7582376 |
||
|
44 |
3 |
Q2140612 |
Screw |
004 |
7582376 |
||
|
45 |
4 |
Q40306 |
Spring washer |
004 |
7582376 |
||
|
46 |
5 |
Q40106 |
Washer |
004 |
7582376 |
||
|
47 |
6 |
Q2140510 |
Screw |
001 |
7582376 |
||
|
48 |
7 |
Q40305 |
Spring washer |
001 |
7582376 |
||
|
49 |
8 |
Q40105 |
Washer |
001 |
7582376 |
||
|
50 |
9 |
Q2140610 |
Screw |
001 |
7582376 |
||
|
51 |
10 |
Q40306 |
Spring washer |
001 |
7582376 |
||
|
52 |
11 |
Q40106 |
Washer |
001 |
7582376 |
||
|
53 |
12 |
WG9916582103 |
Fixing bracket |
001 |
7582376 |
||
|
56 |
13 |
Q2714816F31 |
Screw |
004 |
7582376 |
||
|
57 |
14 |
Q40306 |
Spring washer |
004 |
7582376 |
||
|
73 |
15 |
WG9918580048 |
Plate |
001 |
7582376 |
||
|
61 |
16 |
Q2140512 |
Screw |
003 |
7582376 |
||
|
62 |
17 |
Q340B05 |
Nut |
003 |
7582376 |
||
|
63 |
18 |
Q40205 |
Washer |
003 |
7582376 |
||
|
64 |
19 |
Q2140612F31 |
Screw |
003 |
7582376 |
||
|
65 |
20 |
Q40306 |
Spring washer |
003 |
7582376 |
||
|
66 |
21 |
AZ9918580007 |
CBCU mounting plate 2 assembly |
001 |
7582376 |
||
|
69 |
22 |
Q2714816F31 |
Screw |
004 |
7582376 |
||
|
70 |
23 |
Q40106 |
Washer |
004 |
7582376 |
||
|
71 |
24 |
Q2140612F31 |
Screw |
002 |
7582376 |
||
|
72 |
25 |
Q40306 |
Spring washer |
002 |
7582376 |
||
