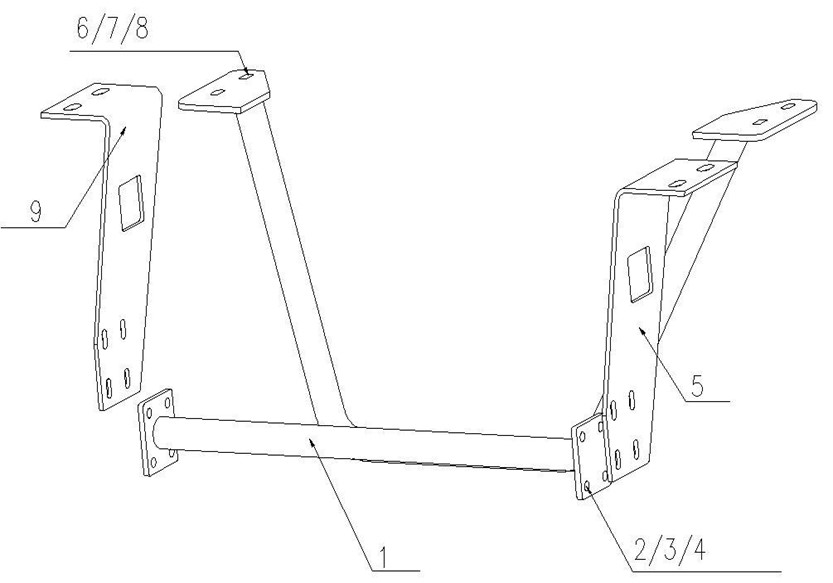

7582424 The oil sump guard assembly
Unit7582424Detail
|
Unit7582424Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
WG9525870025 |
The oil sump guard assembly |
001 |
7582424 |
||
|
13 |
2 |
Q151B1235 |
Bolt |
012 |
7582424 |
||
|
14 |
3 |
Q33212 |
Nut |
012 |
7582424 |
||
|
15 |
4 |
Q40212 |
Washer |
012 |
7582424 |
||
|
9 |
5 |
WG9525870043 |
palte |
001 |
7582424 |
||
|
16 |
6 |
Q150B1640 |
Bolt |
004 |
7582424 |
||
|
17 |
7 |
Q33216 |
Nut |
004 |
7582424 |
||
|
18 |
8 |
Q40216 |
Washer |
004 |
7582424 |
||
|
11 |
9 |
WG9525870044 |
plate |
001 |
7582424 |
||
