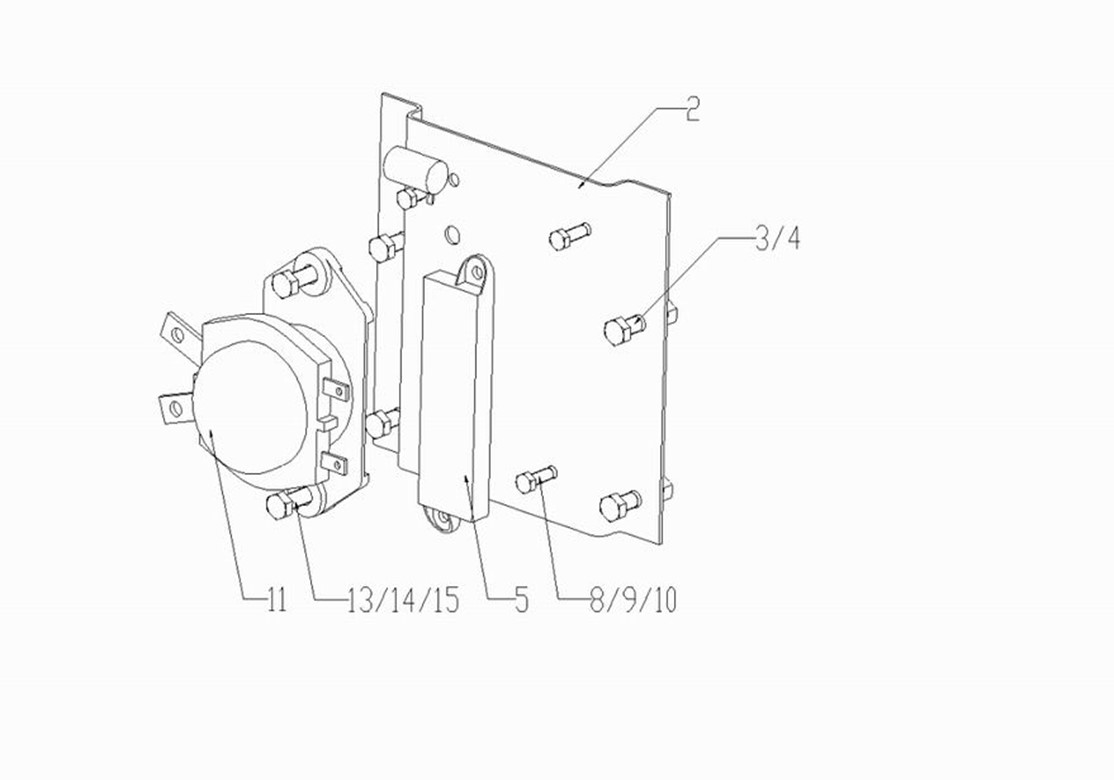

7710156 HW7 engine preheating electrical equipment (1120)
Unit7710156Detail
|
Unit7710156Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
AZ9725581030 |
001 |
7710156 |
|||
|
2 |
2 |
AZ9725581028 |
Electrical connector board |
001 |
7710156 |
||
|
3 |
3 |
Q150B0814 |
Bolt |
004 |
7710156 |
||
|
4 |
4 |
Q33208 |
Nut |
004 |
7710156 |
||
|
5 |
5 |
WG9725580016 |
Fuse-200A |
001 |
7710156 |
||
|
6 |
6 |
WG9725580016/1 |
Safety device assembly 200A (suo electronics) |
001 |
7710156 |
||
|
7 |
7 |
WG9725580007/1 |
Base (suo electronics) |
001 |
7710156 |
||
|
8 |
8 |
Q150B0614 |
Bolt |
002 |
7710156 |
||
|
9 |
9 |
Q33206 |
Nut |
002 |
7710156 |
||
|
10 |
10 |
Q40106 |
Washer |
002 |
7710156 |
||
|
11 |
11 |
WG9725584012 |
Relay |
001 |
7710156 |
||
|
12 |
12 |
WG9725584012/1 |
Preheating relay (zibo) |
001 |
7710156 |
||
|
13 |
13 |
Q340B06 |
Nut |
002 |
7710156 |
||
|
14 |
14 |
Q40306 |
Spring washer |
002 |
7710156 |
||
|
15 |
15 |
Q150B0614 |
Bolt |
002 |
7710156 |
||
|
16 |
16 |
AZ9725772030 |
Wiring harness |
001 |
7710156 |
||
