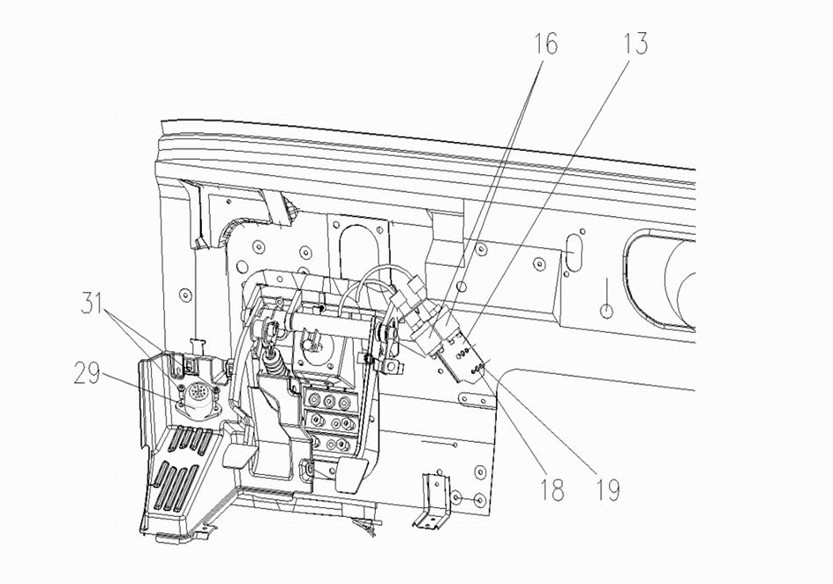

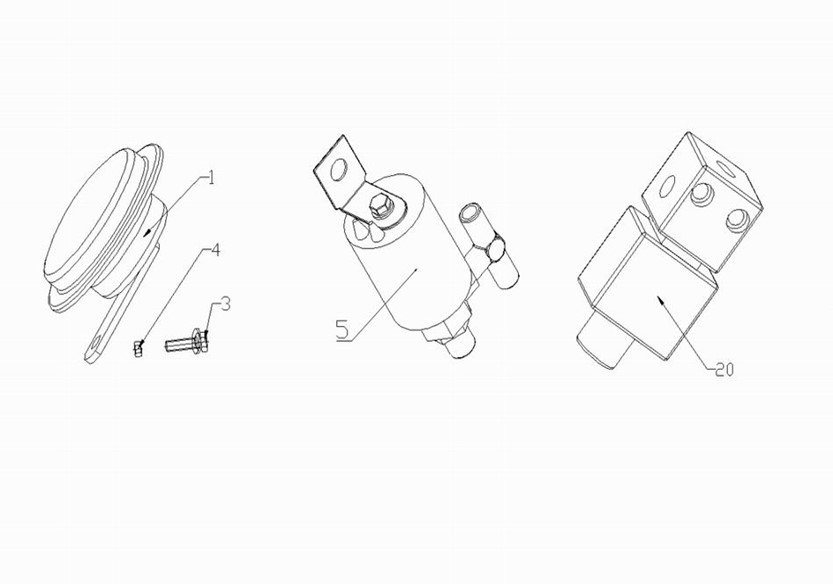

7710170 Chassis electrical (4 valves)
Unit7710170Detail
|
Unit7710170Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
WG9718710002 |
Electric horn |
001 |
7710170 |
||
|
2 |
2 |
WG9718710002/1 |
electric horn |
001 |
7710170 |
||
|
3 |
3 |
Q1460825 |
Bolt assembly |
001 |
7710170 |
||
|
4 |
4 |
Q340B08 |
Nut |
001 |
7710170 |
||
|
5 |
5 |
WG9100710004 |
Pressure switch |
001 |
7710170 |
||
|
6 |
6 |
WG9100710004/1 |
Pressure signal switch (Ryan) |
001 |
7710170 |
||
|
7 |
7 |
WG9100710004 |
Pressure switch |
001 |
7710170 |
||
|
8 |
8 |
WG9100710004/1 |
Pressure signal switch (Ryan) |
001 |
7710170 |
||
|
9 |
9 |
AZ9725710001 |
Bracket |
001 |
7710170 |
||
|
10 |
10 |
Q150B0616 |
Bolt |
002 |
7710170 |
||
|
11 |
11 |
Q40306 |
Spring washer |
002 |
7710170 |
||
|
12 |
12 |
WG9130713001 |
Pressure sensor |
002 |
7710170 |
||
|
13 |
13 |
WG9130713001/1 |
Pressure sensor (jiasheng shaoxing) |
001 |
7710170 |
||
|
14 |
14 |
Q41212 |
Outer serrated lock washer |
002 |
7710170 |
||
|
15 |
15 |
Q40112 |
Washer |
004 |
7710170 |
||
|
16 |
16 |
WG9719710003 |
Solenoid valve |
004 |
7710170 |
||
|
17 |
17 |
WG9719710003/1 |
Solenoid valve |
001 |
7710170 |
||
|
18 |
18 |
Q150B08120 |
Bolt |
004 |
7710170 |
||
|
19 |
19 |
Q40308 |
Spring washer |
002 |
7710170 |
||
|
20 |
20 |
Q41208 |
Washer |
002 |
7710170 |
||
|
21 |
21 |
Q340B08 |
Nut |
004 |
7710170 |
||
|
22 |
22 |
190003962019 |
Plug |
002 |
7710170 |
||
|
23 |
23 |
199000360477 |
Gasket |
002 |
7710170 |
||
|
24 |
24 |
1288 730061 |
O-ring |
002 |
7710170 |
||
|
25 |
25 |
WG9725716001 |
Exhaust brake switch |
001 |
7710170 |
||
|
26 |
26 |
WG9725716001/1 |
Exhaust brake switch (ryanair) |
001 |
7710170 |
||
|
27 |
27 |
Q2714216 |
Screw |
002 |
7710170 |
||
|
28 |
28 |
Q39748202 |
Reed nut |
002 |
7710170 |
||
