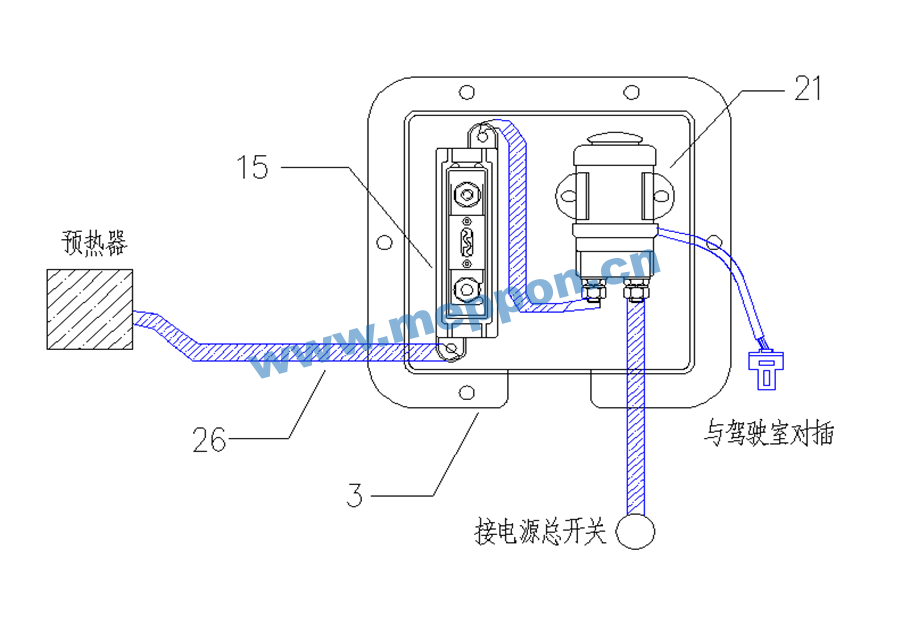

7710211 HW7 inlet preheating electrical equipment (old box/top)
Unit7710211Detail
|
Unit7710211Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
WG9719582031 |
Preheat indicator light/exhaust brake lamp |
001 |
7710211 |
||
|
2 |
2 |
WG9719582031/1 |
Preheat indicator light/exhaust brake lamp |
001 |
7710211 |
||
|
3 |
3 |
WG9725580003 |
Electrical box |
001 |
7710211 |
||
|
4 |
4 |
WG9725580003/1 |
Electrical equipment box assembly (Yellow River headlamp factory) |
001 |
7710211 |
||
|
5 |
5 |
Q150B0845 |
Bolt |
004 |
7710211 |
||
|
6 |
6 |
Q340B08 |
Nut |
004 |
7710211 |
||
|
7 |
7 |
Q40108 |
Washer |
004 |
7710211 |
||
|
8 |
8 |
Q40308 |
Spring washer |
004 |
7710211 |
||
|
9 |
9 |
AZ9725581032 |
Electric relay mounting plate |
001 |
7710211 |
||
|
10 |
10 |
AZ9725581031 |
Electric relay mounting plate |
001 |
7710211 |
||
|
11 |
11 |
Q37106 |
Nut |
002 |
7710211 |
||
|
12 |
12 |
Q150B0810 |
Bolt |
002 |
7710211 |
||
|
13 |
13 |
Q40308 |
Spring washer |
002 |
7710211 |
||
|
14 |
14 |
Q40108 |
Washer |
002 |
7710211 |
||
|
15 |
15 |
WG9725580016 |
Fuse-200A |
001 |
7710211 |
||
|
16 |
16 |
WG9725580016/1 |
Safety device assembly 200A (suo electronics) |
001 |
7710211 |
||
|
17 |
17 |
WG9725580007/1 |
Base (suo electronics) |
001 |
7710211 |
||
|
18 |
18 |
Q150B0614 |
Bolt |
002 |
7710211 |
||
|
19 |
19 |
Q33206 |
Nut |
002 |
7710211 |
||
|
20 |
20 |
Q40106 |
Washer |
002 |
7710211 |
||
|
21 |
21 |
WG9725584012 |
Relay |
001 |
7710211 |
||
|
22 |
22 |
WG9725584012/1 |
Preheating relay (zibo) |
001 |
7710211 |
||
|
23 |
23 |
Q340B06 |
Nut |
002 |
7710211 |
||
|
24 |
24 |
Q40306 |
Spring washer |
002 |
7710211 |
||
|
25 |
25 |
Q150B0614 |
Bolt |
002 |
7710211 |
||
|
26 |
26 |
AZ9725772036 |
Wiring harness |
001 |
7710211 |
||
