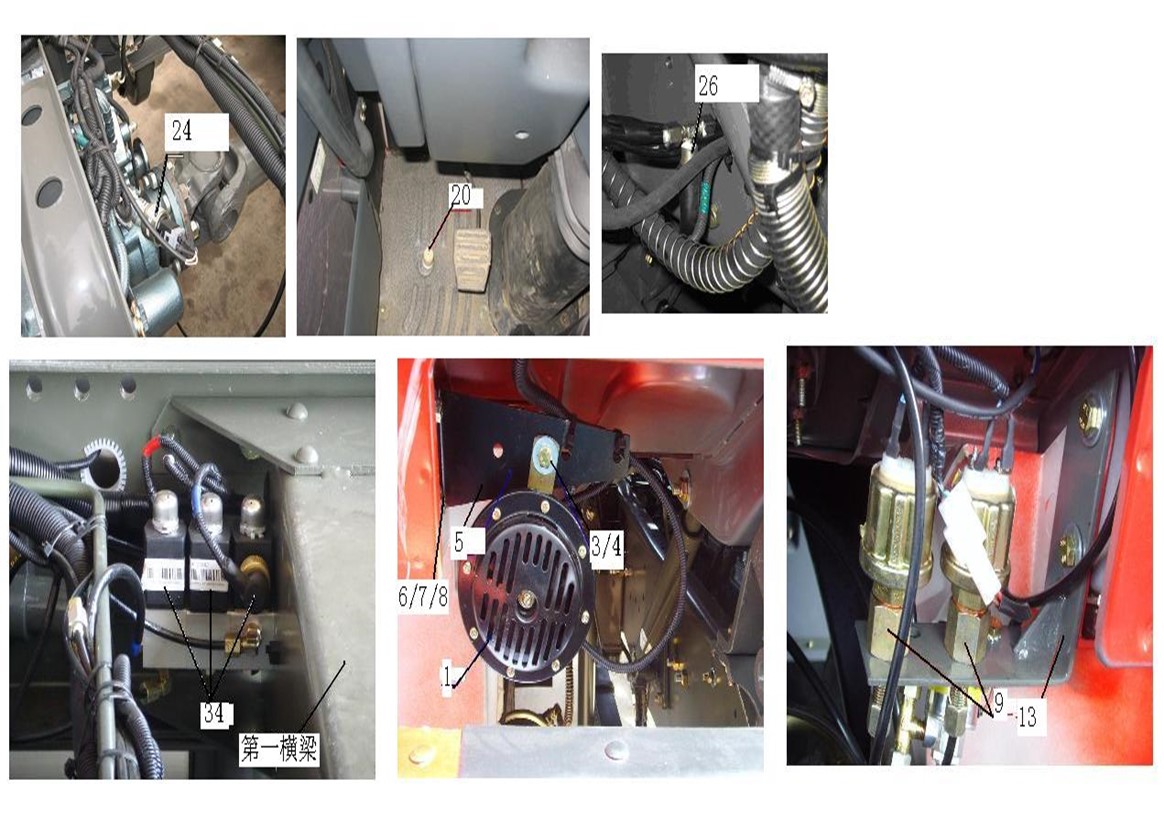

7710263 The chassis electrical appliances (5 solenoid valve)
Unit7710263Detail
|
Unit7710263Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
WG9925710001 |
Horn |
001 |
7710263 |
||
|
2 |
2 |
WG9925710001/1 |
Bell horn (double line/laizhou golden tone) |
001 |
7710263 |
||
|
3 |
3 |
Q1460825 |
Bolt assembly |
001 |
7710263 |
||
|
4 |
4 |
Q340B08 |
Nut |
001 |
7710263 |
||
|
5 |
5 |
AZ9140710002 |
Horn mounting bracket |
001 |
7710263 |
||
|
6 |
6 |
Q150B0820 |
Bolt |
002 |
7710263 |
||
|
7 |
7 |
Q40308 |
Spring washer |
002 |
7710263 |
||
|
8 |
8 |
Q340B08 |
Nut |
002 |
7710263 |
||
|
9 |
9 |
WG9130713001 |
Pressure sensor |
002 |
7710263 |
||
|
10 |
10 |
WG9130713001/1 |
Pressure sensor (jiasheng shaoxing) |
001 |
7710263 |
||
|
11 |
11 |
Q41212 |
Outer serrated lock washer |
002 |
7710263 |
||
|
12 |
12 |
Q40112 |
Washer |
001 |
7710263 |
||
|
13 |
13 |
AZ9120718001 |
Sensor bracket assembly |
001 |
7710263 |
||
|
14 |
14 |
AZ9120718002 |
Bracket |
001 |
7710263 |
||
|
15 |
15 |
AZ9120718003 |
Rib |
001 |
7710263 |
||
|
16 |
16 |
Q150B0625 |
Bolt |
002 |
7710263 |
||
|
17 |
17 |
Q40106 |
Washer |
002 |
7710263 |
||
|
18 |
18 |
Q40306 |
Spring washer |
002 |
7710263 |
||
|
19 |
19 |
Q33206 |
Nut |
002 |
7710263 |
||
|
20 |
20 |
WG9719710002 |
Exhaust brake switch |
001 |
7710263 |
||
|
21 |
21 |
WG9719710002/1 |
Exhaust brake switch |
001 |
7710263 |
||
|
22 |
22 |
Q2714216 |
Screw |
002 |
7710263 |
||
|
23 |
23 |
Q39748202 |
Reed nut |
002 |
7710263 |
||
|
24 |
24 |
WG9100583058 |
Speed sensor |
001 |
7710263 |
||
|
25 |
25 |
WG9100583058/1 |
Speed sensor (jinan xintian yuxin structure) |
001 |
7710263 |
||
|
26 |
26 |
WG9100710004 |
Pressure switch |
001 |
7710263 |
||
|
27 |
27 |
WG9100710004/1 |
Pressure signal switch (Ryan) |
001 |
7710263 |
||
|
28 |
28 |
WG9725580100 |
Relay |
001 |
7710263 |
||
|
29 |
29 |
WG9725580100/1 |
Starting relay (wah, Beijing) |
001 |
7710263 |
||
|
30 |
30 |
Q150B0625 |
Bolt |
002 |
7710263 |
||
|
31 |
31 |
Q340B06 |
Nut |
002 |
7710263 |
||
|
32 |
32 |
Q40106 |
Washer |
002 |
7710263 |
||
|
33 |
33 |
Q40306 |
Spring washer |
002 |
7710263 |
||
|
34 |
34 |
WG9725580021 |
Diode |
001 |
7710263 |
||
|
35 |
35 |
WG9725580021/1 |
Diode assembly (3A) (new tianyu) |
001 |
7710263 |
||
|
36 |
36 |
WG9719710004 |
Solenoid valve |
005 |
7710263 |
||
|
37 |
37 |
WG9719710004/1 |
Solenoid valve |
001 |
7710263 |
||
|
38 |
38 |
Q150B0875 |
Bolt |
002 |
7710263 |
||
|
39 |
39 |
Q150B08190 |
Bolt |
002 |
7710263 |
||
|
40 |
40 |
Q40308 |
Spring washer |
004 |
7710263 |
||
|
41 |
41 |
Q340B08 |
Nut |
004 |
7710263 |
||
