7710271 Chassis electrical system(4 valves)
Unit7710271Detail
|
Unit7710271Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|

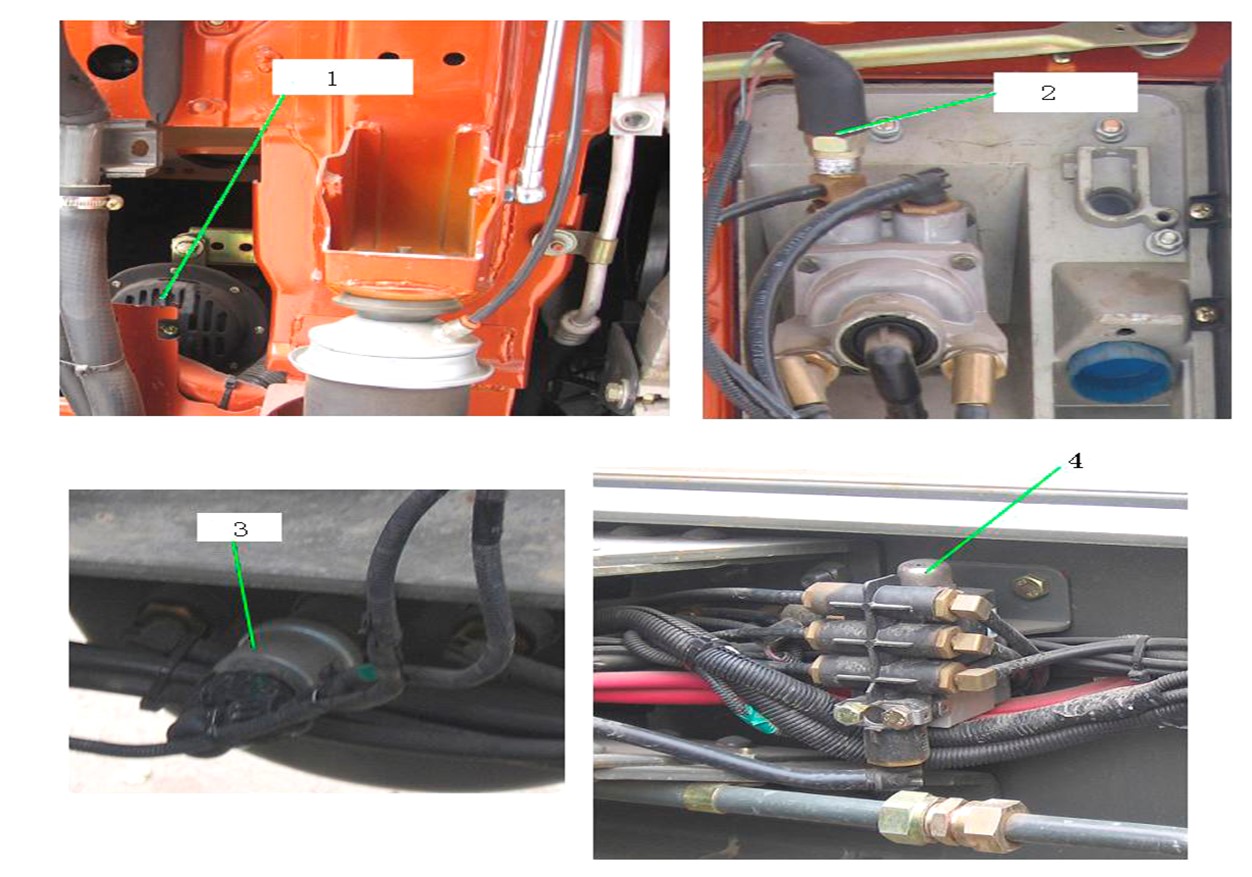

1 |
1 |
WG9925710001 |
Horn |
001 |
7710271 |
||
|
13 |
2 |
WG9100710005 |
Pressure switch |
001 |
7710271 |
||
|
19 |
3 |
WG9925710003 |
Pressure sensor |
002 |
7710271 |
||
|
24 |
4 |
WG9719710004 |
Solenoid valve |
004 |
7710271 |
||
|
4 |
5 |
Q150B0818 |
Bolt |
001 |
7710271 |
||
|
5 |
6 |
Q40308 |
Spring washer |
001 |
7710271 |
||
|
6 |
7 |
Q40208 |
Washer |
001 |
7710271 |
||
|
7 |
8 |
Q1460825 |
Bolt assembly |
001 |
7710271 |
||
|
8 |
9 |
Q340B08 |
Nut |
001 |
7710271 |
||
|
33 |
10 |
1288 730061 |
O-ring |
002 |
7710271 |
||
|
38 |
11 |
WG9925360818 |
Bracket |
001 |
7710271 |
||
|
40 |
12 |
WG9000360477 |
Gasket |
002 |
7710271 |
||
|
15 |
13 |
WG9100710004 |
Pressure switch |
001 |
7710271 |
||
|
17 |
14 |
WG9100710004 |
Pressure switch |
001 |
7710271 |
||
|
55 |
15 |
WG9925710010 |
Bracket |
002 |
7710271 |
||
|
22 |
16 |
Q150B1235 |
Bolt |
004 |
7710271 |
||
|
23 |
17 |
Q33012 |
Nut |
004 |
7710271 |
||
|
26 |
18 |
Q150B08190 |
Bolt |
002 |
7710271 |
||
|
27 |
19 |
Q150B08120 |
Bolt |
002 |
7710271 |
||
|
28 |
20 |
Q40308 |
Spring washer |
004 |
7710271 |
||
|
29 |
21 |
Q41208 |
Washer |
004 |
7710271 |
||
|
30 |
22 |
Q340B08 |
Nut |
004 |
7710271 |
||
|
31 |
23 |
190003962019 |
Plug |
004 |
7710271 |
||
