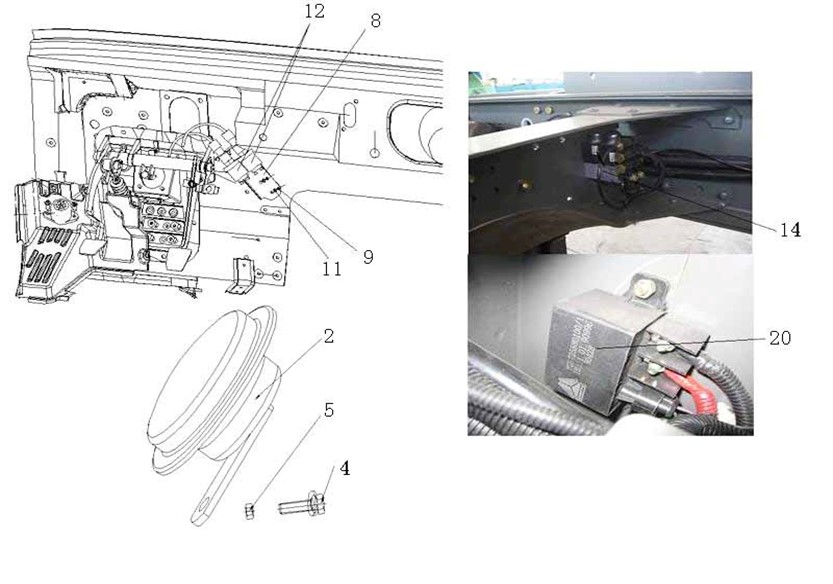

7710293 Chassis electrical (5 valves)
Unit7710293Detail
|
Unit7710293Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
AZ9727710003 |
001 |
7710293 |
|||
|
2 |
2 |
WG9718710002 |
Electric horn |
001 |
7710293 |
||
|
3 |
3 |
WG9718710002/1 |
electric horn |
001 |
7710293 |
||
|
4 |
4 |
Q1460825 |
Bolt assembly |
001 |
7710293 |
||
|
5 |
5 |
Q340B08 |
Nut |
001 |
7710293 |
||
|
6 |
6 |
WG9100710004 |
Pressure switch |
002 |
7710293 |
||
|
7 |
7 |
WG9100710004/1 |
Pressure signal switch (Ryan) |
001 |
7710293 |
||
|
8 |
8 |
AZ9770710001 |
Air pressure sensor bracket |
001 |
7710293 |
||
|
9 |
9 |
Q2140620F31 |
Screw |
001 |
7710293 |
||
|
10 |
10 |
Q2140630F31 |
Screw |
001 |
7710293 |
||
|
11 |
11 |
Q40306 |
Spring washer |
002 |
7710293 |
||
|
12 |
12 |
WG9727710002 |
Pressure sensor |
002 |
7710293 |
||
|
13 |
13 |
WG9727710002/1 |
Electronic pressure sensor (shengmike, wuxi) |
001 |
7710293 |
||
|
14 |
14 |
WG9719710004 |
Solenoid valve |
005 |
7710293 |
||
|
15 |
15 |
WG9719710004/2 |
Solenoid valve |
001 |
7710293 |
||
|
16 |
16 |
Q150B08120 |
Bolt |
002 |
7710293 |
||
|
17 |
17 |
Q150B08190 |
Bolt |
002 |
7710293 |
||
|
18 |
18 |
Q40308 |
Spring washer |
004 |
7710293 |
||
|
19 |
19 |
Q340B08 |
Nut |
004 |
7710293 |
||
|
20 |
20 |
WG9725580100 |
Relay |
001 |
7710293 |
||
|
21 |
21 |
WG9725580100/1 |
Starting relay (wah, Beijing) |
001 |
7710293 |
||
|
22 |
22 |
Q150B0625 |
Bolt |
002 |
7710293 |
||
|
23 |
23 |
Q340B06 |
Nut |
004 |
7710293 |
||
|
24 |
24 |
Q40106 |
Washer |
002 |
7710293 |
||
|
25 |
25 |
Q40306 |
Spring washer |
002 |
7710293 |
||
|
26 |
26 |
WG9725580021 |
Diode |
001 |
7710293 |
||
|
27 |
27 |
WG9725580021/1 |
Diode assembly (3A) (new tianyu) |
001 |
7710293 |
||
|
28 |
28 |
12130 050086 |
Lead seal |
001 |
7710293 |
||
|
29 |
29 |
190000810930 |
Lead seal |
040 |
7710293 |
||
