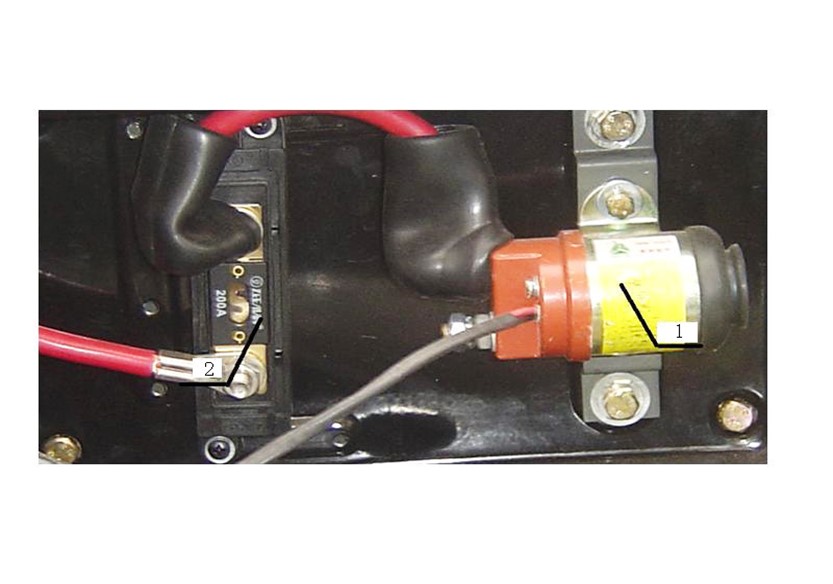

7710301 Preheating device for 70 mine dump truck
Unit7710301Detail
|
Unit7710301Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
14 |
1 |
WG9725584012 |
Relay |
001 |
7710301 |
||
|
8 |
2 |
WG9725580016 |
Fuse-200A |
001 |
7710301 |
||
|
23 |
3 |
WG9725715001 |
protect box |
001 |
7710301 |
||
|
3 |
4 |
AZ9725715002 |
Cushion |
001 |
7710301 |
||
|
4 |
5 |
Q150B0840 |
Bolt |
006 |
7710301 |
||
|
5 |
6 |
Q340B08 |
Nut |
006 |
7710301 |
||
|
6 |
7 |
Q40308 |
Spring washer |
006 |
7710301 |
||
|
7 |
8 |
Q40008 |
Washer |
006 |
7710301 |
||
|
11 |
9 |
Q150B0630 |
Bolt |
002 |
7710301 |
||
|
12 |
10 |
Q33206 |
Nut |
002 |
7710301 |
||
|
13 |
11 |
Q40106 |
Washer |
002 |
7710301 |
||
|
16 |
12 |
Q150B0630 |
Bolt |
002 |
7710301 |
||
|
17 |
13 |
Q40306 |
Spring washer |
002 |
7710301 |
||
|
18 |
14 |
Q33206 |
Nut |
002 |
7710301 |
||
|
19 |
15 |
AZ9725775109 |
Wiring harness |
001 |
7710301 |
||
