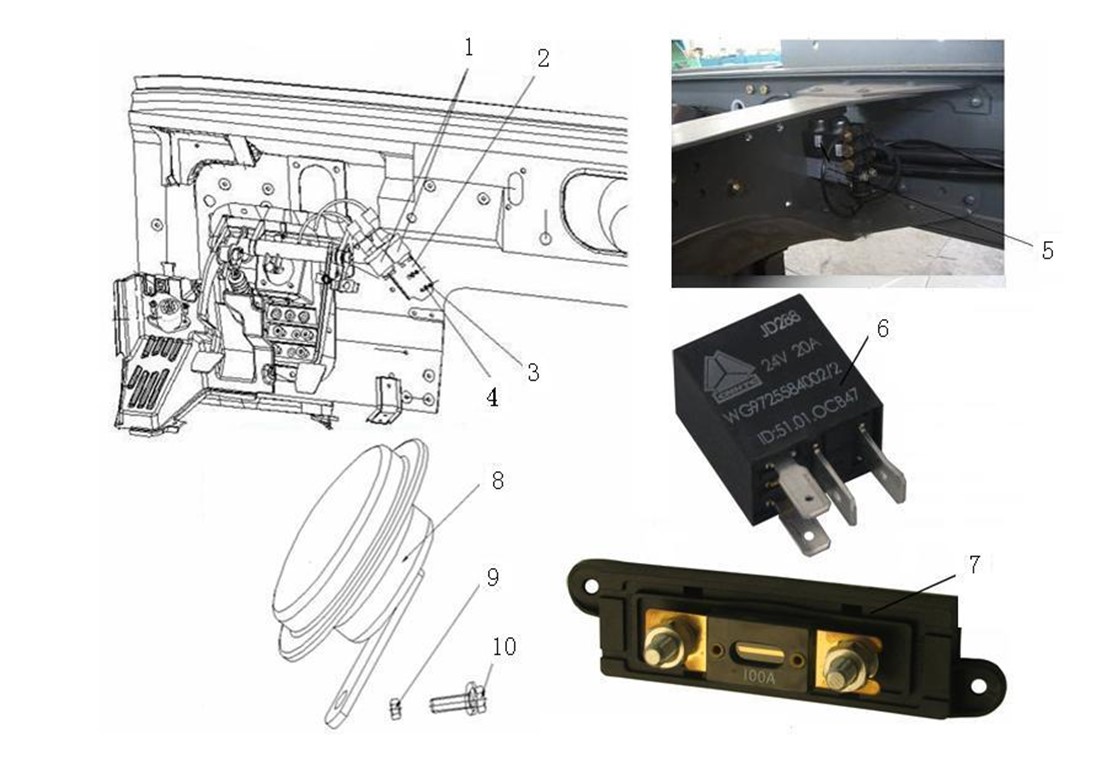

7710346 The chassis electrical appliances (9)
Unit7710346Detail
|
Unit7710346Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
18 |
1 |
WG9727710002 |
Pressure sensor |
002 |
7710346 |
||
|
12 |
2 |
WG9725710004 |
Bracket |
001 |
7710346 |
||
|
16 |
3 |
Q2140620F31 |
Screw |
002 |
7710346 |
||
|
17 |
4 |
Q40306 |
Spring washer |
002 |
7710346 |
||
|
22 |
5 |
WG9719710004 |
Solenoid valve |
009 |
7710346 |
||
|
30 |
6 |
WG9725584002 |
Relay-20A |
001 |
7710346 |
||
|
40 |
7 |
WG9725580006 |
100A safety device |
001 |
7710346 |
||
|
2 |
8 |
WG9718710002 |
Electric horn |
001 |
7710346 |
||
|
7 |
9 |
Q340B08 |
Nut |
001 |
7710346 |
||
|
6 |
10 |
Q1460825 |
Bolt assembly |
001 |
7710346 |
||
|
8 |
11 |
WG9100710004 |
Pressure switch |
002 |
7710346 |
||
|
26 |
12 |
190003800497 |
Bolt |
004 |
7710346 |
||
|
27 |
13 |
Q150B08190 |
Bolt |
002 |
7710346 |
||
|
28 |
14 |
Q40308 |
Spring washer |
006 |
7710346 |
||
|
29 |
15 |
Q340B08 |
Nut |
006 |
7710346 |
||
|
34 |
16 |
Q2140410 |
Screw |
001 |
7710346 |
||
|
35 |
17 |
Q40304 |
Spring washer |
001 |
7710346 |
||
|
36 |
18 |
Q40104 |
Washer |
001 |
7710346 |
||
|
46 |
19 |
Q150B0620 |
Bolt |
002 |
7710346 |
||
|
47 |
20 |
Q40306 |
Spring washer |
002 |
7710346 |
||
|
48 |
21 |
Q40106 |
Washer |
002 |
7710346 |
||
|
49 |
22 |
Q340B06 |
Nut |
002 |
7710346 |
||
