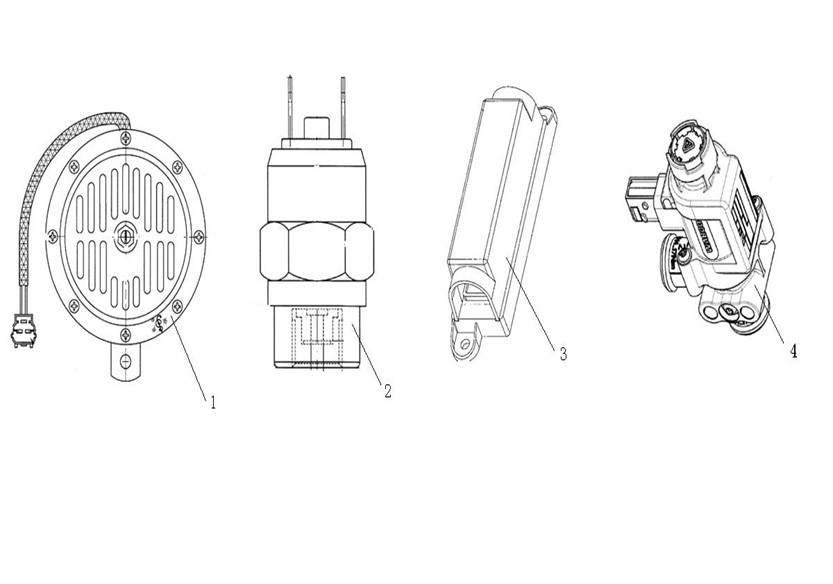

7710500 Electrical system (chassis)
Unit7710500Detail
|
Unit7710500Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
WG9925710001 |
Horn |
001 |
7710500 |
||
|
19 |
2 |
WG9100710004 |
Pressure switch |
001 |
7710500 |
||
|
23 |
3 |
WG9725580006 |
100A safety device |
001 |
7710500 |
||
|
34 |
4 |
811W52160-6117 |
exhaust brake valve |
001 |
7710500 |
||
|
4 |
5 |
Q1460825 |
Bolt assembly |
001 |
7710500 |
||
|
5 |
6 |
Q340B08 |
Nut |
001 |
7710500 |
||
|
6 |
7 |
AZ9140710002 |
Horn mounting bracket |
001 |
7710500 |
||
|
7 |
8 |
Q150B0820 |
Bolt |
002 |
7710500 |
||
|
8 |
9 |
Q40308 |
Spring washer |
002 |
7710500 |
||
|
9 |
10 |
Q340B08 |
Nut |
002 |
7710500 |
||
|
10 |
11 |
Q41212 |
Outer serrated lock washer |
002 |
7710500 |
||
|
11 |
12 |
Q40112 |
Washer |
001 |
7710500 |
||
|
12 |
13 |
WG9120718001 |
Pneumatic sensor support assembly |
001 |
7710500 |
||
|
15 |
14 |
Q150B0625 |
Bolt |
002 |
7710500 |
||
|
16 |
15 |
Q40106 |
Washer |
002 |
7710500 |
||
|
17 |
16 |
Q40306 |
Spring washer |
002 |
7710500 |
||
|
18 |
17 |
Q33206 |
Nut |
002 |
7710500 |
||
|
30 |
18 |
Q150B0620 |
Bolt |
002 |
7710500 |
||
|
31 |
19 |
Q40306 |
Spring washer |
002 |
7710500 |
||
|
32 |
20 |
Q40106 |
Washer |
002 |
7710500 |
||
|
33 |
21 |
Q340B06 |
Nut |
002 |
7710500 |
||
|
36 |
22 |
752W25441-0014 |
bracket |
001 |
7710500 |
||
|
40 |
23 |
Q150B0875 |
Bolt |
002 |
7710500 |
||
|
41 |
24 |
Q40308 |
Spring washer |
002 |
7710500 |
||
|
42 |
25 |
Q340B08 |
Nut |
002 |
7710500 |
||
