7710525 Electric equipment for chassis
Unit7710525Detail
|
Unit7710525Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|

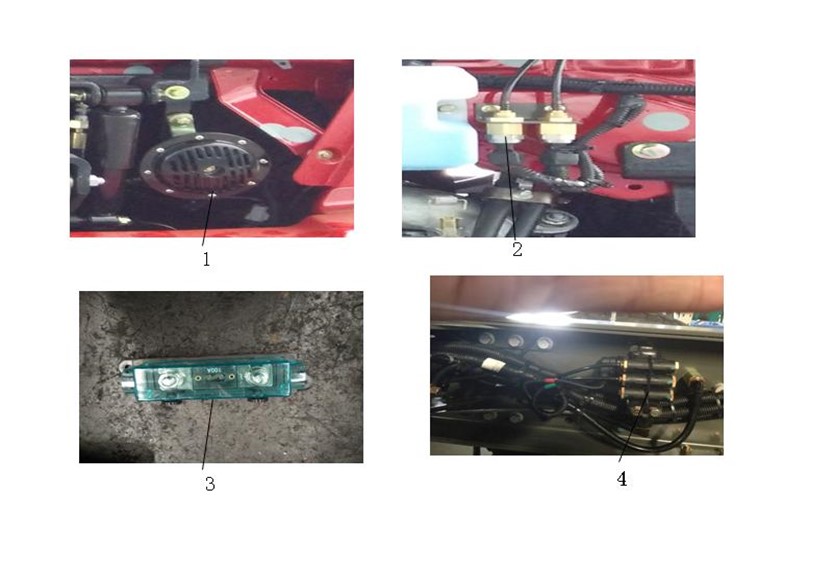

1 |
1 |
WG9925710001 |
Horn |
001 |
7710525 |
||
|
6 |
2 |
WG9727710002 |
Pressure sensor |
002 |
7710525 |
||
|
23 |
3 |
WG9725580006 |
100A safety device |
001 |
7710525 |
||
|
34 |
4 |
WG9719710004 |
Solenoid valve |
001 |
7710525 |
||
|
4 |
5 |
Q1460825 |
Bolt assembly |
001 |
7710525 |
||
|
5 |
6 |
Q340B08 |
Nut |
001 |
7710525 |
||
|
10 |
7 |
Q41212 |
Outer serrated lock washer |
002 |
7710525 |
||
|
11 |
8 |
Q40112 |
Washer |
004 |
7710525 |
||
|
12 |
9 |
WG9140710004 |
Bracket |
001 |
7710525 |
||
|
16 |
10 |
Q150B0630Q |
Bolt |
001 |
7710525 |
||
|
17 |
11 |
Q40206 |
Washer |
001 |
7710525 |
||
|
18 |
12 |
Q33206 |
Nut |
001 |
7710525 |
||
|
19 |
13 |
WG9100710004 |
Pressure switch |
001 |
7710525 |
||
|
30 |
14 |
Q150B0620 |
Bolt |
002 |
7710525 |
||
|
31 |
15 |
Q40306 |
Spring washer |
002 |
7710525 |
||
|
32 |
16 |
Q40106 |
Washer |
002 |
7710525 |
||
|
33 |
17 |
Q340B06 |
Nut |
002 |
7710525 |
||
|
38 |
18 |
Q150B08120 |
Bolt |
002 |
7710525 |
||
|
39 |
19 |
Q40308 |
Spring washer |
002 |
7710525 |
||
|
40 |
20 |
Q340B08 |
Nut |
002 |
7710525 |
||
|
44 |
21 |
WG9312710001 |
Bracket |
001 |
7710525 |
||
|
47 |
33 |
WG9925710010 |
Bracket |
001 |
7710525 |
||
