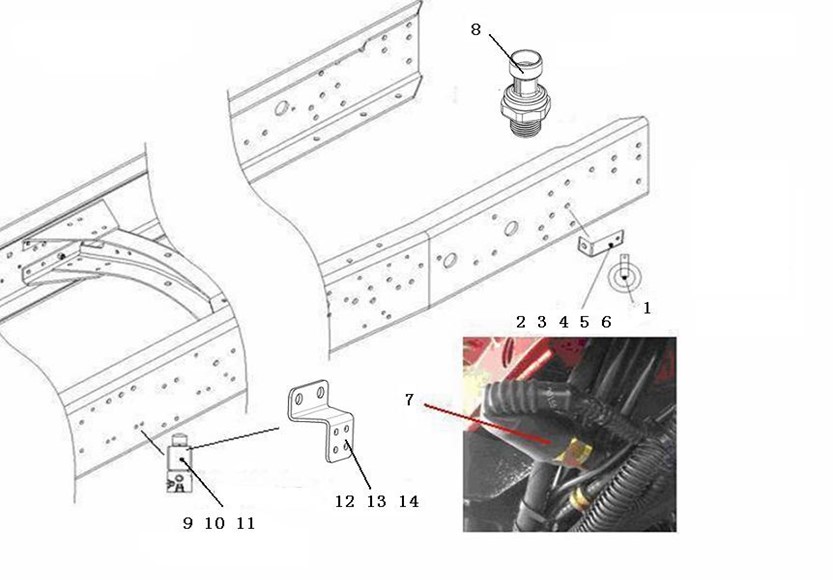

7710684 Chassis Electrical Equipment
Unit7710684Detail
|
Unit7710684Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
WG9100710043 |
Electric horn |
001 |
7710684 |
||
|
5 |
2 |
WG9525580264 |
Horn Holder |
001 |
7710684 |
||
|
7 |
3 |
ZQ1840816 |
Hexagon bolts with flange |
001 |
7710684 |
||
|
8 |
4 |
ZQ32008 |
Hexagon nuts with flange |
001 |
7710684 |
||
|
9 |
5 |
WG9100710004 |
Pressure switch |
001 |
7710684 |
||
|
12 |
6 |
WG9727710002 |
Pressure sensor |
002 |
7710684 |
||
|
16 |
7 |
WG9719710004 |
Solenoid valve |
005 |
7710684 |
||
|
20 |
8 |
Q150B08175 |
Hexagon head bolt (effective length of thread >35mm) |
002 |
7710684 |
||
|
21 |
9 |
ZQ32008 |
Hexagon nuts with flange |
002 |
7710684 |
||
|
24 |
10 |
WG9525580263 |
Solenoid valve stand |
002 |
7710684 |
||
|
26 |
11 |
ZQ1811445TF6 |
Hexagon flange bolts with teeth |
004 |
7710684 |
||
|
27 |
12 |
ZQ32514T13F6 |
Hexagon flange nuts with teeth |
004 |
7710684 |
||
|
22 |
13 |
Q150B08100 |
Bolt |
002 |
7710684 |
||
|
23 |
14 |
ZQ32008 |
Hexagon nuts with flange |
002 |
7710684 |
||
