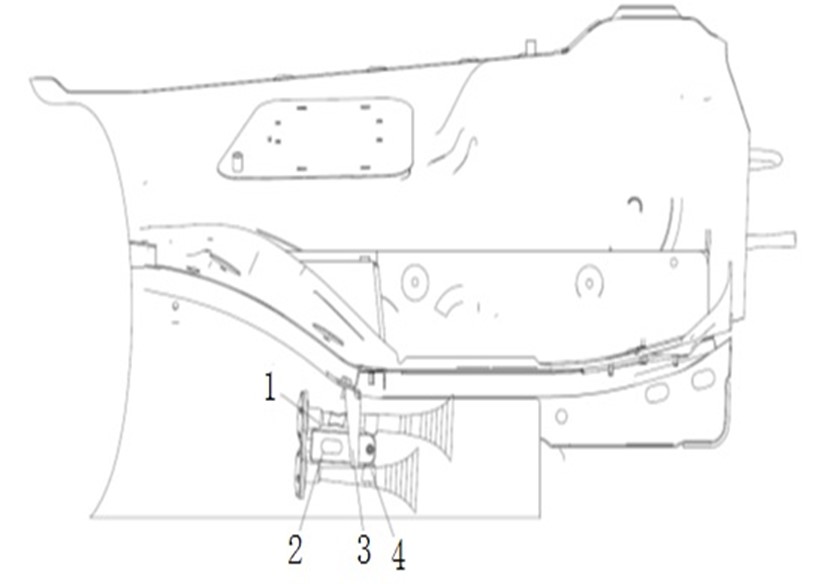

7720254 The Pneuphonic horn Assembly On The Chassis
Unit7720254Detail
|
Unit7720254Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
3 |
1 |
WG9000270002 |
Automotive—Air horn |
001 |
7720254 |
||
|
7 |
2 |
WG9725270023 |
L bracket |
001 |
7720254 |
||
|
9 |
3 |
WG9725270031 |
Bracket |
001 |
7720254 |
||
|
5 |
4 |
WG9725270022 |
Air horn Clamp |
001 |
7720254 |
||
|
12 |
5 |
ZQ1841016 |
Hexagon bolts with flange |
002 |
7720254 |
||
|
13 |
6 |
ZQ1840625 |
Hexagon bolts with flange |
002 |
7720254 |
||
|
14 |
7 |
ZQ32006 |
Hexagon nuts with flange |
002 |
7720254 |
||
|
15 |
8 |
WG9000361109 |
Nozzle |
001 |
7720254 |
||
|
17 |
9 |
WG9000361107 |
Nozzle |
003 |
7720254 |
||
|
19 |
10 |
WG9000361001 |
Gasket |
002 |
7720254 |
||
|
21 |
11 |
WG9000361002 |
Clip |
002 |
7720254 |
||
|
23 |
12 |
WG9000361003 |
Nut |
002 |
7720254 |
||
|
25 |
13 |
190003179782 |
Plastic tube |
008 |
7720254 |
||
|
26 |
14 |
WG9718710003 |
Solenoid valve |
001 |
7720254 |
||
|
28 |
15 |
ZQ1800820 |
Hexagon flange bolts with teeth |
001 |
7720254 |
||
