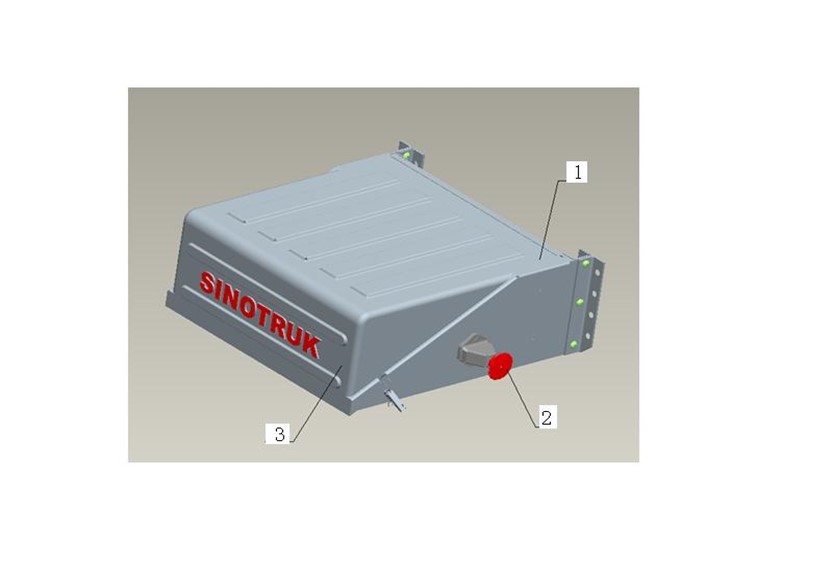

7760128 New battery box (TGA frame / left / 1424 / two gas cylinder 275)
Unit7760128Detail
|
Unit7760128Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
34 |
1 |
WG9925761140 |
Storage battery box |
001 |
7760128 |
||
|
55 |
2 |
WG9100760102 |
Power switch |
001 |
7760128 |
||
|
22 |
3 |
AZ9100760102 |
Cover |
001 |
7760128 |
||
|
6 |
4 |
Q151B1445 |
Bolt |
003 |
7760128 |
||
|
7 |
5 |
Q40114 |
Washer |
003 |
7760128 |
||
|
8 |
6 |
Q33214 |
Nut |
003 |
7760128 |
||
|
9 |
7 |
WG9725930401 |
Block |
002 |
7760128 |
||
|
38 |
8 |
WG9725550111 |
Washer |
002 |
7760128 |
||
|
12 |
9 |
AZ9725930402 |
Plate |
002 |
7760128 |
||
|
41 |
10 |
ZQ151B1495TF6 |
Hexagon head bolts |
004 |
7760128 |
||
|
43 |
11 |
WG9725550111 |
Washer |
001 |
7760128 |
||
|
42 |
12 |
ZQ361B14T13F6 |
Hexagon nuts ,style 2 |
004 |
7760128 |
||
|
33 |
13 |
Q150B0814 |
Bolt |
004 |
7760128 |
||
|
17 |
14 |
WG9100760104 |
Plate |
002 |
7760128 |
||
|
19 |
15 |
Q340B08 |
Nut |
006 |
7760128 |
||
|
20 |
16 |
Q40208 |
Washer |
006 |
7760128 |
||
|
21 |
17 |
Q40308 |
Spring washer |
006 |
7760128 |
||
|
23 |
18 |
AZ9100760108 |
Cushion |
001 |
7760128 |
||
|
51 |
19 |
WG1682110021 |
Rubber buffer |
006 |
7760128 |
||
|
27 |
20 |
199100760099 |
Gasket |
001 |
7760128 |
||
|
28 |
21 |
Q150B0835 |
Bolt |
002 |
7760128 |
||
|
29 |
22 |
Q40308 |
Spring washer |
002 |
7760128 |
||
|
30 |
23 |
Q40108 |
Washer |
002 |
7760128 |
||
|
31 |
24 |
Q340B08 |
Nut |
002 |
7760128 |
||
|
58 |
25 |
WG9925760004 |
connect plate |
001 |
7760128 |
||
