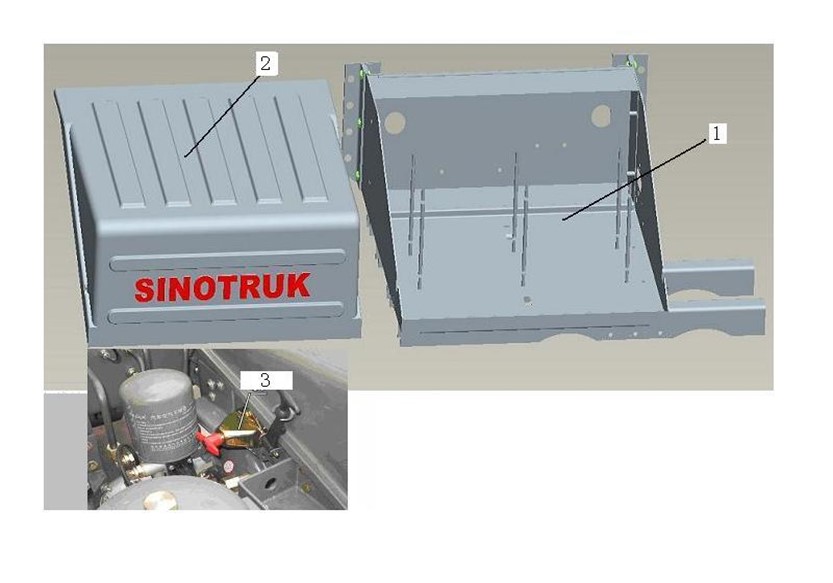

7760137 New battery box (TGA frame / left / 1422 / three air reservoir 275)
Unit7760137Detail
|
Unit7760137Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
WG9925761150 |
New battery box assembly (TGA frame) |
001 |
7760137 |
||
|
20 |
2 |
AZ9100760102 |
Cover |
001 |
7760137 |
||
|
23 |
3 |
WG9100760100 |
Main switch |
001 |
7760137 |
||
|
30 |
4 |
AZ9925760004 |
connect plate |
001 |
7760137 |
||
|
4 |
5 |
Q151B1445 |
Bolt |
003 |
7760137 |
||
|
5 |
6 |
Q40114 |
Washer |
003 |
7760137 |
||
|
6 |
7 |
Q33214 |
Nut |
003 |
7760137 |
||
|
7 |
8 |
WG9725930401 |
Block |
002 |
7760137 |
||
|
41 |
9 |
WG9725550111 |
Washer |
002 |
7760137 |
||
|
10 |
10 |
AZ9725930402 |
Plate |
002 |
7760137 |
||
|
44 |
11 |
ZQ151B1495TF6 |
Hexagon head bolts |
004 |
7760137 |
||
|
32 |
12 |
Q33208 |
Nut |
004 |
7760137 |
||
|
45 |
13 |
ZQ361B14T13F6 |
Hexagon nuts ,style 2 |
004 |
7760137 |
||
|
46 |
14 |
WG9725550111 |
Washer |
001 |
7760137 |
||
|
15 |
15 |
WG9100760104 |
Plate |
002 |
7760137 |
||
|
17 |
16 |
Q340B08 |
Nut |
006 |
7760137 |
||
|
18 |
17 |
Q40208 |
Washer |
006 |
7760137 |
||
|
19 |
18 |
Q40308 |
Spring washer |
006 |
7760137 |
||
|
21 |
19 |
AZ9100760108 |
Cushion |
001 |
7760137 |
||
|
22 |
20 |
1682 110021 |
Rubber buffer |
006 |
7760137 |
||
|
25 |
21 |
199100760099 |
Gasket |
001 |
7760137 |
||
|
26 |
22 |
Q150B0835 |
Bolt |
002 |
7760137 |
||
|
27 |
23 |
Q40308 |
Spring washer |
002 |
7760137 |
||
|
28 |
24 |
Q40108 |
Washer |
002 |
7760137 |
||
|
29 |
25 |
Q340B08 |
Nut |
002 |
7760137 |
||
|
31 |
26 |
Q150B0814 |
Bolt |
004 |
7760137 |
||
