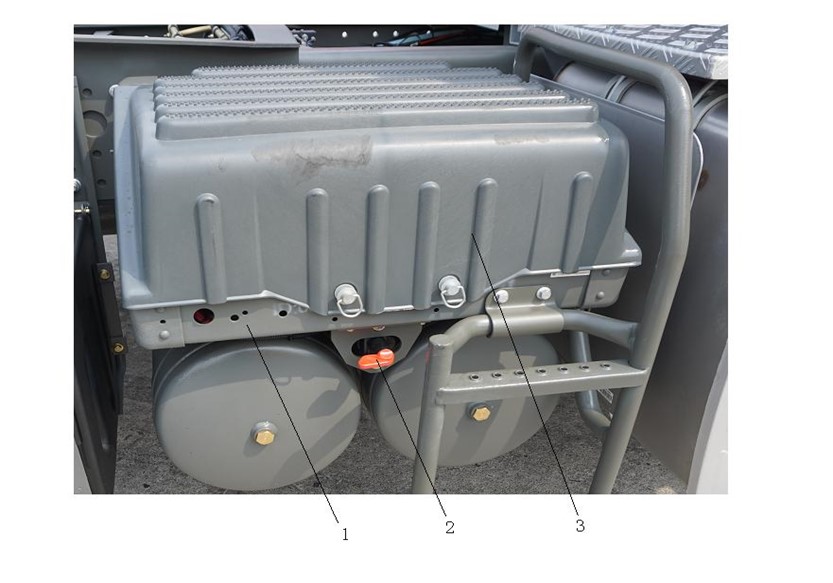

7760200 Storage battery box
Unit7760200Detail
|
Unit7760200Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
WG9925760101 |
Battery box |
001 |
7760200 |
||
|
16 |
2 |
WG9100760100 |
Main switch |
001 |
7760200 |
||
|
13 |
3 |
AZ9100760102 |
Cover |
001 |
7760200 |
||
|
5 |
4 |
AZ9725550001 |
Washer |
002 |
7760200 |
||
|
6 |
5 |
ZQ151B1445TF6 |
Hexagon head bolts |
012 |
7760200 |
||
|
7 |
6 |
ZQ341B14T13F3 |
Hexagon nuts ,style 1 |
012 |
7760200 |
||
|
8 |
7 |
WG9925760104 |
Plate |
002 |
7760200 |
||
|
10 |
8 |
Q340B08 |
Nut |
006 |
7760200 |
||
|
11 |
9 |
Q40208 |
Washer |
006 |
7760200 |
||
|
12 |
10 |
Q40308 |
Spring washer |
006 |
7760200 |
||
|
14 |
11 |
AZ9100760108 |
Cushion |
001 |
7760200 |
||
|
15 |
12 |
1682 110021 |
Rubber buffer |
006 |
7760200 |
||
|
19 |
13 |
199100760099 |
Gasket |
001 |
7760200 |
||
|
20 |
14 |
ZQ1840835TF6 |
Hexagon bolts with flange |
002 |
7760200 |
||
|
21 |
15 |
ZQ32008T13F6 |
Hexagon nuts with flange |
002 |
7760200 |
||
|
22 |
16 |
AZ9925760004 |
connect plate |
001 |
7760200 |
||
|
23 |
17 |
Q150B0814 |
Bolt |
004 |
7760200 |
||
|
24 |
18 |
Q33208 |
Nut |
004 |
7760200 |
||
