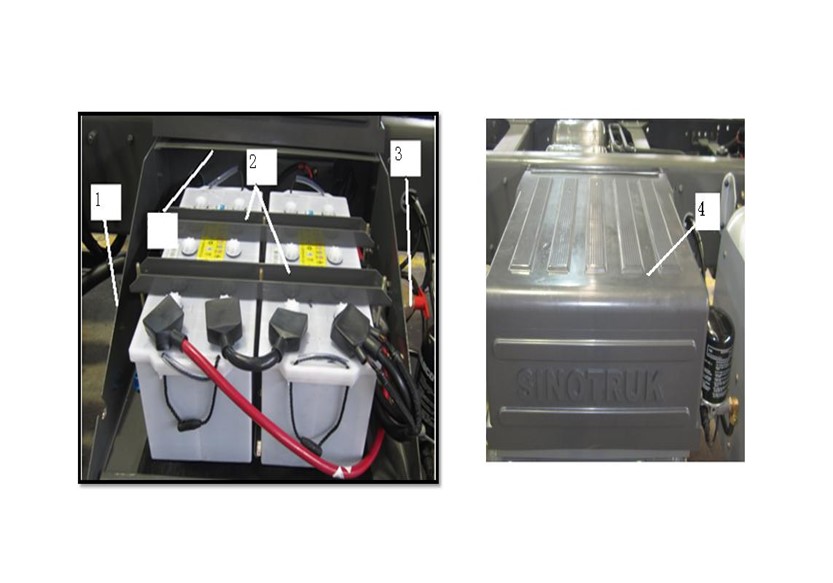

7760211 Battery box
Unit7760211Detail
|
Unit7760211Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
WG9100761101 |
Battery box |
001 |
7760211 |
||
|
9 |
2 |
WG9100760104 |
Plate |
002 |
7760211 |
||
|
19 |
3 |
WG9100760100 |
Main switch |
001 |
7760211 |
||
|
8 |
4 |
AZ9100760102 |
Cover |
001 |
7760211 |
||
|
32 |
5 |
ZQ1811455TF2 |
Hexagon flange bolts with teeth |
008 |
7760211 |
||
|
33 |
6 |
ZQ32514T13F2 |
Hexagon flange nuts with teeth |
008 |
7760211 |
||
|
31 |
7 |
Q33208 |
Nut |
004 |
7760211 |
||
|
14 |
8 |
Q340B08 |
Nut |
006 |
7760211 |
||
|
15 |
9 |
Q40208 |
Washer |
006 |
7760211 |
||
|
16 |
10 |
Q40308 |
Spring washer |
006 |
7760211 |
||
|
17 |
11 |
1682 110021 |
Rubber buffer |
006 |
7760211 |
||
|
18 |
12 |
AZ9100760108 |
Cushion |
001 |
7760211 |
||
|
22 |
13 |
199100760099 |
Gasket |
001 |
7760211 |
||
|
23 |
14 |
Q150B0835 |
Bolt |
002 |
7760211 |
||
|
24 |
15 |
Q40308 |
Spring washer |
002 |
7760211 |
||
|
25 |
16 |
Q340B08 |
Nut |
002 |
7760211 |
||
|
26 |
17 |
AZ9719770058 |
Sleeve |
002 |
7760211 |
||
|
27 |
18 |
Q150B0620 |
Bolt |
002 |
7760211 |
||
|
29 |
19 |
AZ9925760004 |
connect plate |
001 |
7760211 |
||
|
30 |
20 |
Q150B0814 |
Bolt |
004 |
7760211 |
||
