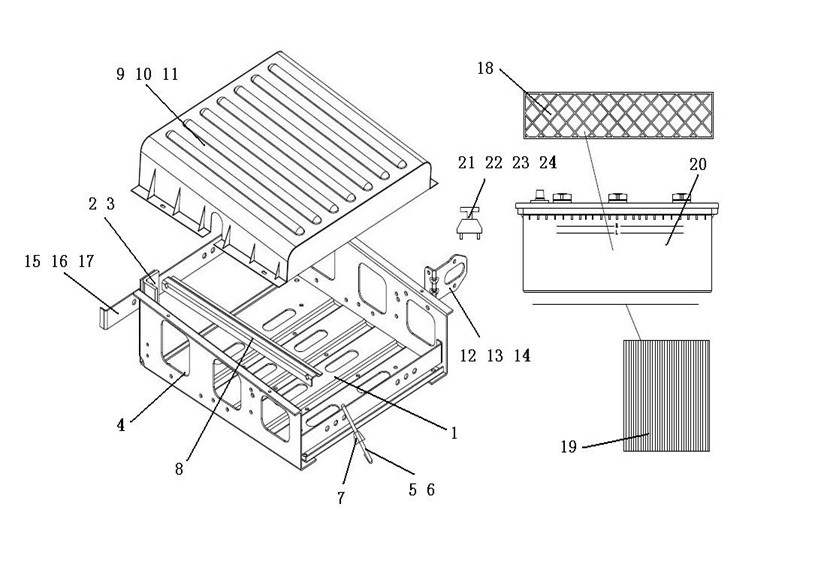

7760231 Lightweight battery box
Unit7760231Detail
|
Unit7760231Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
WG9525760001 |
The battery box assembly |
001 |
7760231 |
||
|
10 |
2 |
ZQ1811240TF6 |
Hexagon flange bolts with teeth |
006 |
7760231 |
||
|
11 |
3 |
ZQ32512T13F6 |
Hexagon flange nuts with teeth |
006 |
7760231 |
||
|
12 |
4 |
WG1651110101 |
Projection frame |
080 |
7760231 |
||
|
14 |
5 |
WG9525760002 |
The fixed rod |
004 |
7760231 |
||
|
17 |
6 |
ZQ32008 |
Hexagon nuts with flange |
008 |
7760231 |
||
|
18 |
7 |
1682 110021 |
Rubber buffer |
004 |
7760231 |
||
|
19 |
8 |
WG9525760028 |
The battery plate saaembly |
002 |
7760231 |
||
|
21 |
9 |
WG9525760004 |
The battery box |
001 |
7760231 |
||
|
24 |
10 |
ZQ1840620 |
Hexagon bolts with flange |
004 |
7760231 |
||
|
25 |
11 |
ZQ32006 |
Hexagon nuts with flange |
004 |
7760231 |
||
|
26 |
12 |
WG9525760005 |
The power switch bracket |
001 |
7760231 |
||
|
29 |
13 |
ZQ1840820 |
Hexagon bolts with flange |
002 |
7760231 |
||
|
30 |
14 |
ZQ32008 |
Hexagon nuts with flange |
002 |
7760231 |
||
|
31 |
15 |
WG9525760006 |
After pulling plate |
001 |
7760231 |
||
|
34 |
16 |
ZQ1840620 |
Hexagon bolts with flange |
004 |
7760231 |
||
|
35 |
17 |
ZQ32006 |
Hexagon nuts with flange |
004 |
7760231 |
||
|
36 |
18 |
WG9525760010 |
Plate |
001 |
7760231 |
||
|
38 |
19 |
WG9525760007 |
Rubber pad |
001 |
7760231 |
||
|
40 |
20 |
WG9720760002 |
135Ah Battery |
002 |
7760231 |
||
|
42 |
21 |
WG9100760100 |
Main switch |
001 |
7760231 |
||
|
45 |
22 |
ZQ1840830 |
Hexagon bolts with flange |
002 |
7760231 |
||
|
46 |
23 |
199100760099 |
Gasket |
001 |
7760231 |
||
|
47 |
24 |
ZQ32008 |
Hexagon nuts with flange |
002 |
7760231 |
||
