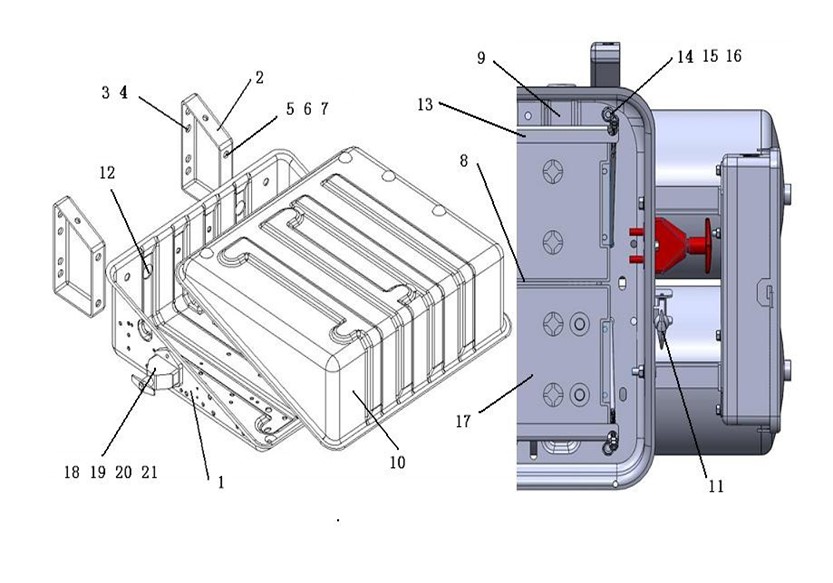

7760249 Battery box
Unit7760249Detail
|
Unit7760249Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
199100760227 |
Strengthen the battery box body assembly |
001 |
7760249 |
||
|
20 |
2 |
199114760004 |
To strengthen the support assembly |
002 |
7760249 |
||
|
26 |
3 |
Q151B1645 |
Bolt |
006 |
7760249 |
||
|
27 |
4 |
ZQ32516T13F2 |
Hexagon flange nuts with teeth |
006 |
7760249 |
||
|
28 |
5 |
Q151B16200TF3 |
hexagon bolt |
002 |
7760249 |
||
|
29 |
6 |
ZQ32516T13F6 |
Hexagon flange nuts with teeth |
002 |
7760249 |
||
|
30 |
7 |
Q40016 |
Washer |
004 |
7760249 |
||
|
31 |
8 |
WG9100760066 |
Plate |
001 |
7760249 |
||
|
34 |
9 |
WG9100760084 |
Cushion |
001 |
7760249 |
||
|
37 |
10 |
WG9100760002 |
Battery cover |
001 |
7760249 |
||
|
42 |
11 |
WG9100760021 |
Hook assembly |
002 |
7760249 |
||
|
47 |
12 |
LG97003600202 |
Sight Procetor φ50×3 |
002 |
7760249 |
||
|
49 |
13 |
WG9525760029 |
The battery plate saaembly |
002 |
7760249 |
||
|
51 |
14 |
WG9525760017 |
The fixed rod |
004 |
7760249 |
||
|
53 |
15 |
1682 110021 |
Rubber buffer |
004 |
7760249 |
||
|
54 |
16 |
ZQ32008 |
Hexagon nuts with flange |
008 |
7760249 |
||
|
55 |
17 |
WG9720760001 |
165Ah Battery |
002 |
7760249 |
||
|
58 |
18 |
WG9100760100 |
Main switch |
001 |
7760249 |
||
|
61 |
19 |
199100760099 |
Gasket |
001 |
7760249 |
||
|
62 |
20 |
ZQ1840835 |
Hexagon bolts with flange |
002 |
7760249 |
||
|
63 |
21 |
ZQ32008 |
Hexagon nuts with flange |
002 |
7760249 |
||
