7760255 Power SW
Unit7760255Detail
|
Unit7760255Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|

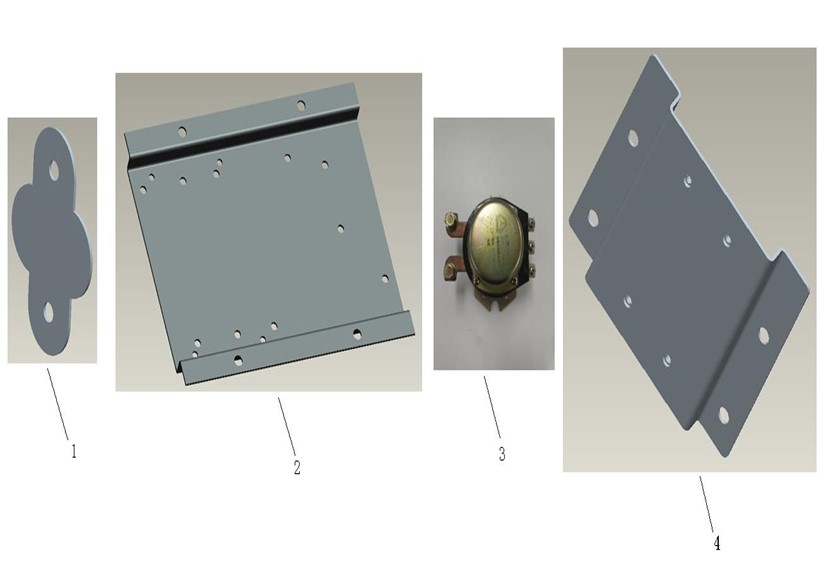

1 |
1 |
WG9925761201 |
power supply switch board |
001 |
7760255 |
||
|
21 |
2 |
WG9925760004 |
connect plate |
001 |
7760255 |
||
|
10 |
3 |
WG9100760101 |
Electromagnetic power main switch |
001 |
7760255 |
||
|
12 |
4 |
WG9100763007 |
Electromagnetic power master switch bracket assembly |
001 |
7760255 |
||
|
3 |
5 |
Q150B0835 |
Bolt |
002 |
7760255 |
||
|
4 |
6 |
Q40308 |
Spring washer |
002 |
7760255 |
||
|
5 |
7 |
Q340B08 |
Nut |
002 |
7760255 |
||
|
8 |
8 |
Q150B0814 |
Bolt |
004 |
7760255 |
||
|
9 |
9 |
Q33208 |
Nut |
004 |
7760255 |
||
|
16 |
10 |
Q150B0812 |
Bolt |
002 |
7760255 |
||
|
17 |
11 |
Q33208 |
Nut |
002 |
7760255 |
||
|
18 |
12 |
Q2140812 |
Screw |
002 |
7760255 |
||
|
19 |
13 |
Q40308 |
Spring washer |
002 |
7760255 |
||
|
20 |
14 |
Q40108 |
Washer |
002 |
7760255 |
||
