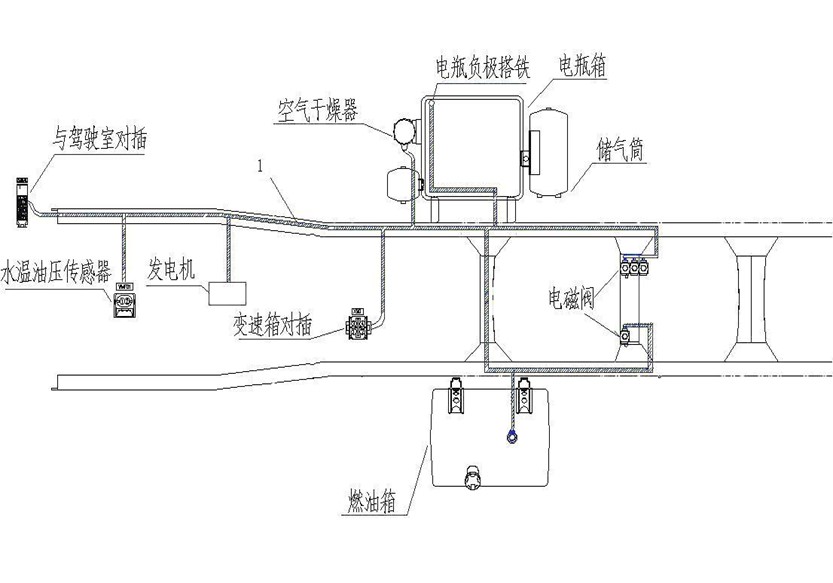

7774248 Chassis wire (S35/ST cab / D12 / mechanical box)
Unit7774248Detail
|
Unit7774248Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
1 |
1 |
AZ9922771302 |
Chassis wiring harness |
001 |
7774248 |
||
|
2 |
2 |
AZ9925770284 |
Bracket assembly |
001 |
7774248 |
||
|
3 |
3 |
AZ9925770281 |
Wire slot |
001 |
7774248 |
||
|
4 |
4 |
AZ9925770282 |
Tube |
001 |
7774248 |
||
|
5 |
5 |
AZ9925770283 |
Bracket |
001 |
7774248 |
||
|
6 |
6 |
Q150B1020 |
Bolt |
003 |
7774248 |
||
|
7 |
7 |
Q340B10 |
Nut |
003 |
7774248 |
||
|
8 |
8 |
Q40010 |
Washer |
003 |
7774248 |
||
|
9 |
9 |
Q40310 |
Spring washer |
003 |
7774248 |
||
|
10 |
10 |
WG9925360819 |
Bracket |
003 |
7774248 |
||
|
11 |
11 |
WG9925360819/3 |
Angle bracket (five holes)(jinan fuwei) |
001 |
7774248 |
||
|
12 |
12 |
Q150B1018 |
Bolt |
003 |
7774248 |
||
|
13 |
13 |
Q340B10 |
Nut |
003 |
7774248 |
||
|
14 |
14 |
Q40010 |
Washer |
003 |
7774248 |
||
|
15 |
15 |
Q40310 |
Spring washer |
003 |
7774248 |
||
|
16 |
16 |
WG9925360818 |
Bracket |
006 |
7774248 |
||
|
17 |
17 |
WG9925360818/1 |
Angle bracket (three holes)(jinan ward) |
001 |
7774248 |
||
|
18 |
18 |
Q150B1018 |
Bolt |
006 |
7774248 |
||
|
19 |
19 |
Q340B10 |
Nut |
006 |
7774248 |
||
|
20 |
20 |
Q40010 |
Washer |
006 |
7774248 |
||
|
21 |
21 |
Q40310 |
Spring washer |
006 |
7774248 |
||
|
22 |
22 |
WG9100360134 |
Spacer |
015 |
7774248 |
||
|
23 |
23 |
199100360134 |
Spacer |
001 |
7774248 |
||
|
24 |
24 |
190003179045 |
Shield sleeve |
001 |
7774248 |
||
|
25 |
25 |
190003179045 |
Shield sleeve |
004 |
7774248 |
||
|
26 |
26 |
AZ9003170001 |
Shield sleeve |
004 |
7774248 |
||
