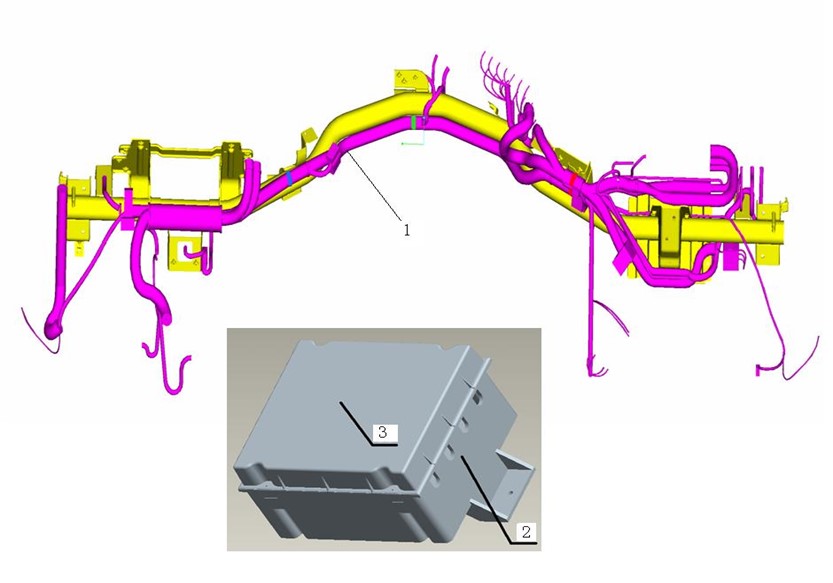

7774815 Single side 50 harvesters chassis wire (countriesⅢ)
Unit7774815Detail
|
Unit7774815Detail |
|||||||
|
Num |
Hot Num |
Diagram No. |
Name |
Quantity |
Vertion |
Disuse Time |
Unit Code |
|
2 |
1 |
AZ9750775701 |
Wiring harness |
001 |
7774815 |
||
|
31 |
2 |
WG9100770392 |
Housing |
001 |
7774815 |
||
|
42 |
3 |
WG9100770394 |
Cover |
001 |
7774815 |
||
|
3 |
4 |
Q41205 |
Washer |
003 |
7774815 |
||
|
4 |
5 |
Q68620 |
Clip |
001 |
7774815 |
||
|
5 |
6 |
Q150B0616 |
Bolt |
001 |
7774815 |
||
|
6 |
7 |
Q40306 |
Spring washer |
001 |
7774815 |
||
|
7 |
8 |
Q340B06 |
Nut |
001 |
7774815 |
||
|
8 |
9 |
WG9725584005 |
Resistance |
002 |
7774815 |
||
|
12 |
10 |
WG1642110018 |
Sealing |
010 |
7774815 |
||
|
17 |
11 |
WG9130773002 |
Wire protection box assembly |
001 |
7774815 |
||
|
26 |
12 |
Q2714219 |
Self tapping screw for cross slotted head |
007 |
7774815 |
||
|
27 |
13 |
Q340B08 |
Nut |
004 |
7774815 |
||
|
28 |
14 |
Q2140820 |
Screw |
004 |
7774815 |
||
|
29 |
15 |
Q40208 |
Washer |
004 |
7774815 |
||
|
34 |
16 |
179100770391 |
Case |
001 |
7774815 |
||
|
41 |
17 |
Q2762995 |
Screw |
003 |
7774815 |
||
|
45 |
18 |
179100770395 |
Sleeve |
004 |
7774815 |
||
|
46 |
19 |
190003120032 |
Sealing strips |
570 |
7774815 |
||
|
47 |
20 |
Q2713525 |
Screw |
004 |
7774815 |
||
|
48 |
21 |
Q150B0630Q |
Bolt |
002 |
7774815 |
||
|
49 |
22 |
Q40206 |
Washer |
002 |
7774815 |
||
|
50 |
23 |
Q40106 |
Washer |
002 |
7774815 |
||
|
51 |
24 |
Q40306 |
Spring washer |
002 |
7774815 |
||
|
52 |
25 |
Q340B06 |
Nut |
002 |
7774815 |
||
|
53 |
26 |
190003171356 |
Cable binder |
015 |
7774815 |
||
|
54 |
27 |
190003171392 |
Cable binder |
015 |
7774815 |
||
|
55 |
28 |
WG9725584025 |
2.7 k Ω resistance |
002 |
7774815 |
||
|
58 |
29 |
AZ9719770047 |
Sleeve |
001 |
7774815 |
||
