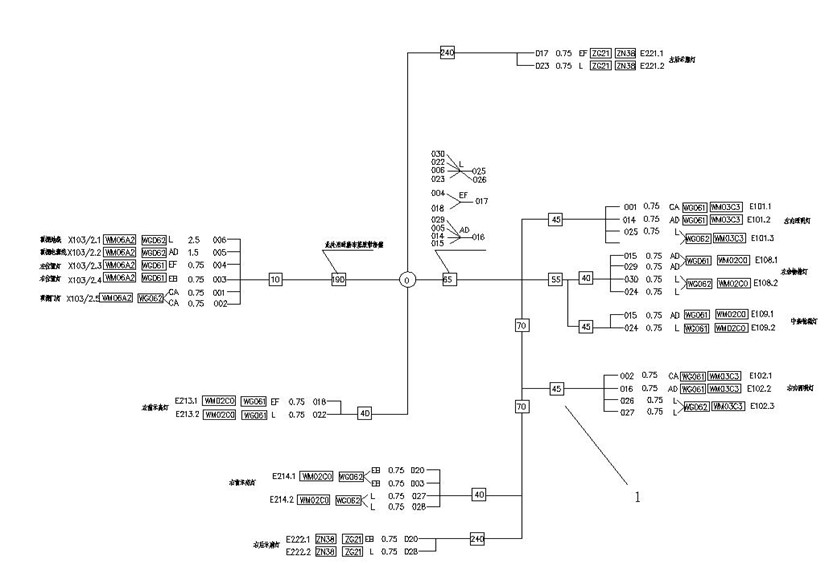

7900012 wire of sleeping berth light

Unit7900012Detail






Unit7900012Detail

Num

Hot Num

Diagram No.

Name

Quantity

Vertion

Disuse Time

Unit Code

1

1

752-25452-6029

Wiring

001



7900012

7900005 WIRE

Unit7900005Detail






Unit7900005Detail

Num

Hot Num

Diagram No.

Name

Quantity

Vertion

Disuse Time

Unit Code

1

1

712-25452-6003

Top electric wire (top)

001



7900005

7900004 harness

Unit7900004Detail






Unit7900004Detail

Num

Hot Num

Diagram No.

Name

Quantity

Vertion

Disuse Time

Unit Code

1

1

712-25452-6100

harness

001



7900004

7900001 harness

Unit7900001Detail






Unit7900001Detail

Num

Hot Num

Diagram No.

Name

Quantity

Vertion

Disuse Time

Unit Code

1

1

712-25452-6105

wiring harness

001



7900001

7870001 engine mounting

Unit7870001Detail






Unit7870001Detail

Num

Hot Num

Diagram No.

Name

Quantity

Vertion

Disuse Time

Unit Code

7

1

752W96210-0050

Front rubber mounting

002



7870001

22

2

WG9925590266

Stud

002



7870001

24

3

ZQ32516T13F6

Hexagon flange nuts with teeth

002



7870001

21

4

ZQ32512T13F6

Hexagon flange nuts with teeth

004



7870001

2

5

752W97488-0001

Block

002



7870001

20

6

ZQ1851255TF6

Hexagon bolts with flange

004



7870001

19

7

ZQ1811240TF6

Hexagon flange bolts with teeth

004



7870001

41

8

ZQ1851280TF6

Hexagon bolts with flange

002



7870001

58

9

ZQ1851460TF6

Hexagon bolts with flange

004



7870001

49

10

752W41501-0034

Right bracket

001



7870001

45

11

752W41501-0033

Left bracket

001



7870001

25

12

752W96210-0060

Rear rubber mounting

002



7870001

37

13

752W97488-0004

Plate

004



7870001

42

14

ZQ1851285TF6

Hexagon bolts with flange

002



7870001

43

15

ZQ1851250TF6

Hexagon bolts with flange

004



7870001

53

16

ZQ151C1240TF6

Hexagon head bolts

010



7870001

54

17

ZQ151C1235

Bolt

002



7870001

55

18

WG9000310012

Embeded lock washer

012



7870001

44

19

ZQ32512T13F6

Hexagon flange nuts with teeth

008



7870001

7810044 light

Unit7810044Detail






Unit7810044Detail

Num

Hot Num

Diagram No.

Name

Quantity

Vertion

Disuse Time

Unit Code

1

1

WG9125810001

T/ side marker light 7 function combination rear light (left)

001



7810044

3

2

WG9125810002

T/ side marker light 7 function combination rear light (right)

001



7810044

6

3

WG9325930289

BRACKET

002



7810044

5

4

Q32008

Nut

008



7810044

9

5

ZQ1811050TF6

Hexagon flange bolts with teeth

004



7810044

10

6

ZQ32510T13F6

Hexagon flange nuts with teeth

004



7810044

7810043 Four fixed point combined rear lamp

Unit7810043Detail






Unit7810043Detail

Num

Hot Num

Diagram No.

Name

Quantity

Vertion

Disuse Time

Unit Code

1

1

WG9925810001

Grouped lamps

001



7810043

7

2

WG9925810002

Grouped lamps

001



7810043

11

3

Q340B08

Nut

008



7810043

12

4

Q40208

Washer

008



7810043

13

5

Q40308

Spring washer

008



7810043

7810041 Four fixed point combined rear lamp

Unit7810041Detail






Unit7810041Detail

Num

Hot Num

Diagram No.

Name

Quantity

Vertion

Disuse Time

Unit Code

1

1

WG9925810001

Grouped lamps

001



7810041

11

2

ZQ32008

Hexagon nuts with flange

008



7810041

7

3

WG9925810002

Grouped lamps

001



7810041

7810038 Rear tail light

Unit7810038Detail






Unit7810038Detail

Num

Hot Num

Diagram No.

Name

Quantity

Vertion

Disuse Time

Unit Code

1

1

LG9706810001

Rear combination tail lamp

001



7810038

3

2

LG9706810002

Rear combination tail lamp

001



7810038

5

3

Q150B0620

Bolt

006



7810038

6

4

Q340B06

Nut

006



7810038

7

5

Q40106

Washer

006



7810038

8

6

Q40306

Spring washer

006



7810038

9

7

LG9706810003

License plate lamp

001



7810038

11

8

Q340B05

Nut

002



7810038

7810036 Four fixed point combined rear lamp

Unit7810036Detail






Unit7810036Detail

Num

Hot Num

Diagram No.

Name

Quantity

Vertion

Disuse Time

Unit Code

1

1

WG9125810001

T/ side marker light 7 function combination rear light (left)

001



7810036

6

2

WG9125810002

T/ side marker light 7 function combination rear light (right)

001



7810036

14

3

ZQ32008

Hexagon nuts with flange

008



7810036
